Multi-Mover-L25
Calculate if this model is right for me
Request information

Multi-Mover L25

Large
Up to 2500 kg

Weight 180 - 280 kg
Length 120 cm
Width 70 or 82 cm
Height 95 cm
Push and Pull force 2500 kg



Also available in this model:
Multi-Mover L25s

Multi-Mover L25

in practice

L25-240KG-1
L25-240KG-2
L25-LP4
L25-240KG-5
L25-0517
L25-Conan-2-1
L25-Conan-2
L25-Conan1-1
L25-Conan1
L25-FR
L25-Incline
L25-MAN-DE
L25-mit-Conan
L25-Müllc
L25-non-marking
L25-NRW
L25-SDK-2
L25-Wasserette

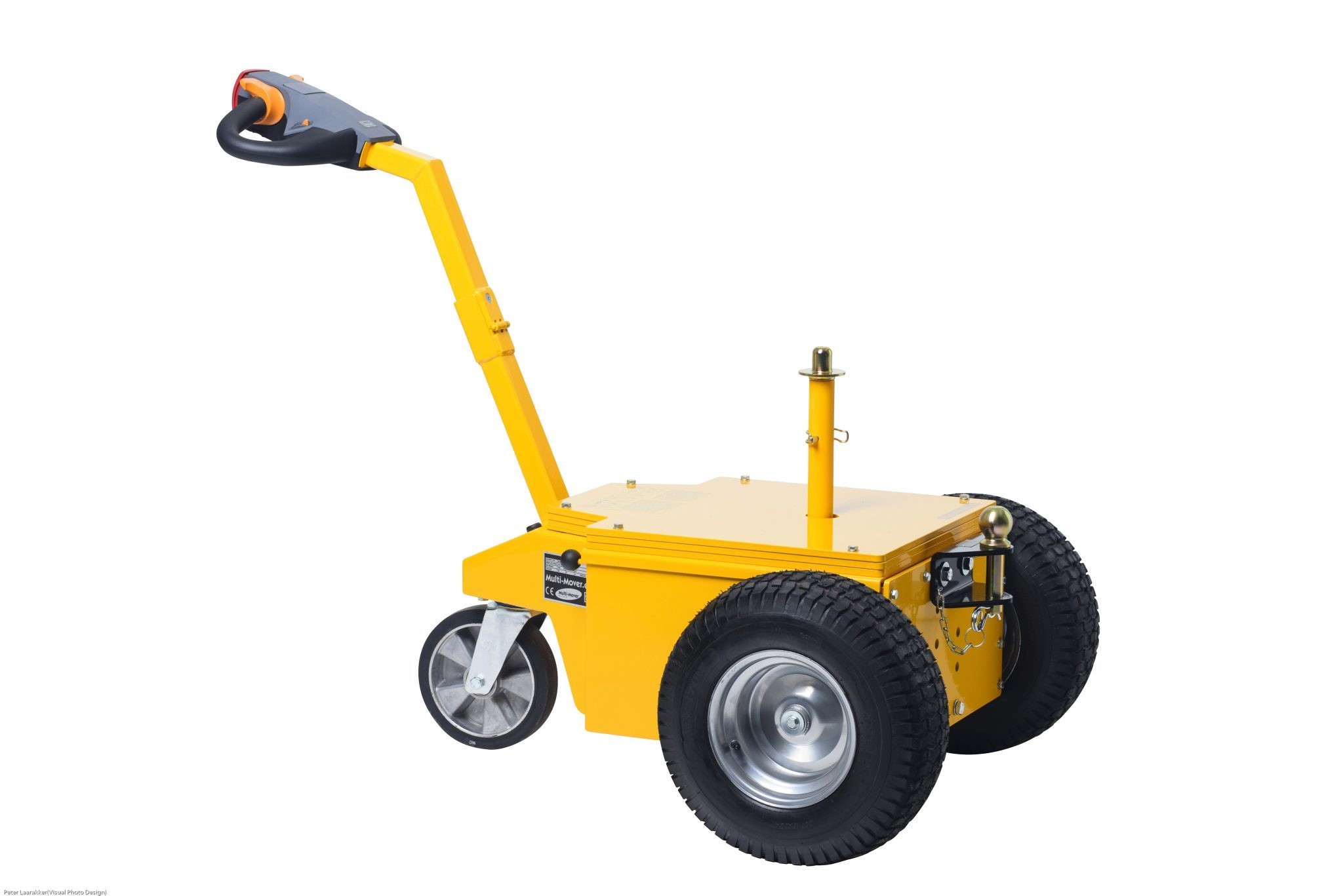

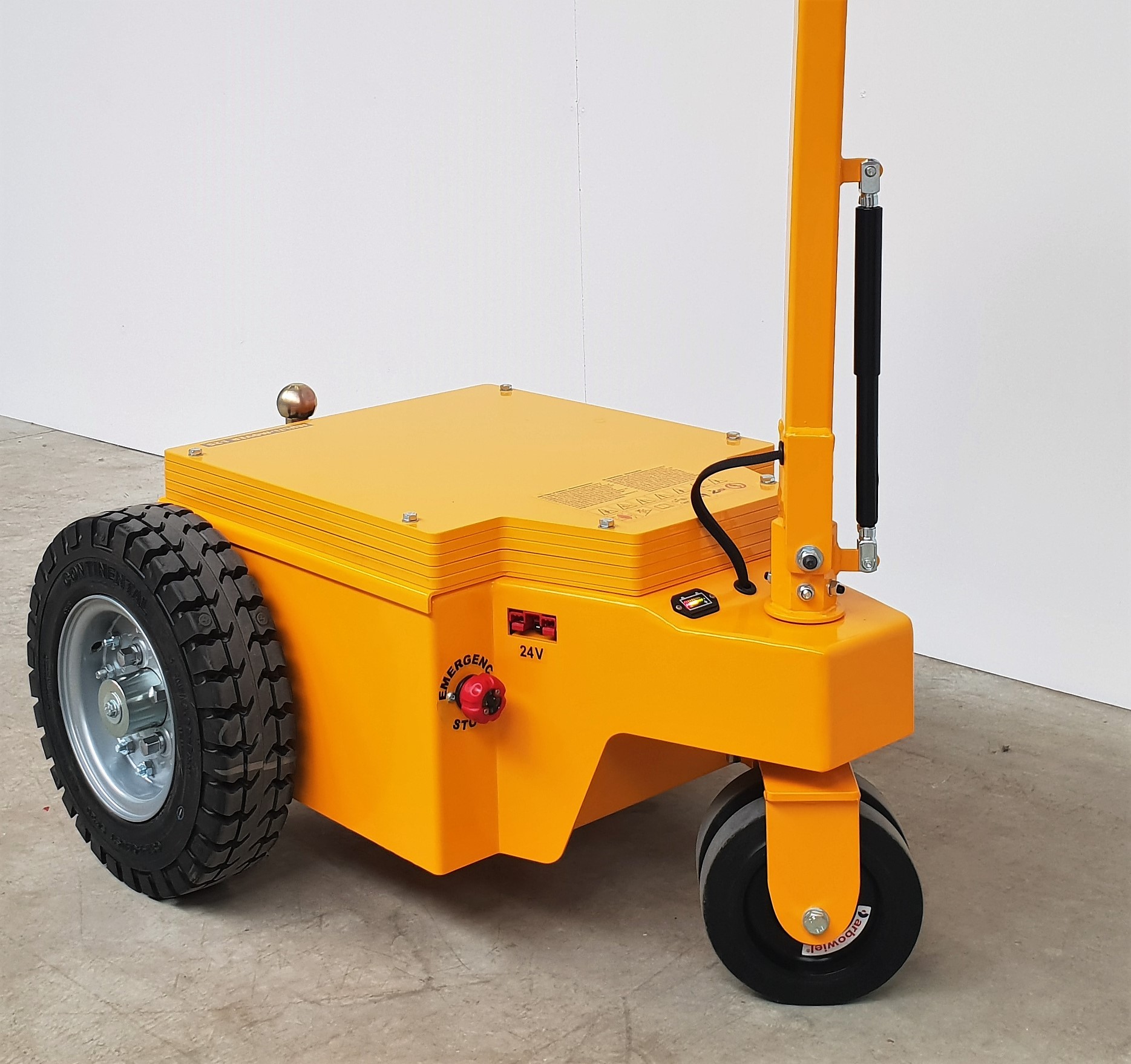

With the Multi-Mover L25 electric power tug for trailers, you can easily move and precisely manoeuvre caravans, trailers and trolleys weighing up to 2500 kg.

Thanks to its special tyres and robust motor, the Multi-Mover can be used on both hard and somewhat soft surfaces. You can use the pulling aid in the factory, stable or caravan showroom and in many other locations. You can also use this Multi-Mover to lift waste bins and rubbish containers up ramps.

The Multi-Mover L is versatile and, compared to other Multi-Movers, is very compact, foldable and therefore easy to transport. This model is ideal for single-axle trailers and is also frequently used in industry.

This model is available from 180 kg own weight to 280 kg, sufficient weight for traction and safe braking. There is also a stronger version de Multi-Mover L25s.
  • Motor power 900 Watt 24VDC 140A, maintenance-free
  • 2 x 12 Volt 50 Ah battery, maintenance-free, AGM
  • Charger 24 Volt 8A High drop charger
  • Tractive horizontal force 2500 kg, 1400 Newton
  • Pneumatic tyres with 16 inch block treads, 16 cm wide
  • Solid rubber swivel castor, ∅ 200 mm
  • Control ergonomic tiller head with emergency stop
  • Potentiometer for continuously variable maximum speed up to 5 km/h
  • Foldable tiller head arm
  • Maximum ball pressure 300 kg
  • Lock with 2 keys
  • Battery indicator
  • Error display
  • Emergency stop switch on the housing
  • Minimum speed is 0.5 km/h
  • Tow ball/bolt  coupling at 45 cm height
  • Conehead /ball head at 65 cm height
  • Coupling plate with M12 thread at various heights for couplings
  • Working range: 4 to 6 k
  • Operating time: 3-4 working days
  • 82 w x 120 l x 95 h
  • Weight between 180 and 280 kg
  • 2-year warranty, parts list and instruction manual
  • CE and declaration of conformity

Supplied complete with 2 batteries (in drive box), external charger and couplings couplings. There are several options to choose from..

Tyres
Click here

Swivel castors
Click here

Extra weight
Total weight 220 KG
Total weight 240 KG
Total weight 280 KG with axle reinforcement

Hitches
Click here

Other options
75A Battery pack
Anti wheely wheels
Pneumatic tyres 15/16 /18 inch foamed
Steering on tiller head
Other RAL colour
Horn
Hour meter
LED light
Flashing light
ATEX
INOX
